Cors-Air LIGHT, Cors-Air LIGHT/Sport, Cors-Air Black Bull and Cors-Air M19 engine prices
Important NOTE: Starting with 2019 a 12% price increase is added to all spare parts due to the embargo on cheaper oil and natural gas imported from Russia by european industry.
NEW Black Bull engine (35 HP) hand start or electric start incl. complete exhaust, reduction
carburetor WB 37C,air-box less propeller or cooling shroud.................................. $3,475.00
New Black Devil LIGHT/ Sport ............................................................................................ $3,199.00 plus shipping
Notes:
The price of all the above Black Devil engines is for 1:2.2; 1:2.5 and 1:2.6 reduction
For the FORTE reduction (1:2.88) add $200.00
For the Cors-Air Black Devil LIGHT/SPORT with carbon fiber muffler, carbon fiber air-box and quick propeller change system add $250.00
None of the above engines has the propeller included in the price.
Important notes:
The fuel injected Cors-Air M25Y/Black Devil engines
are not available for civilian use. They are sold only to US military contractors for UAV (Unmanned Aircraft) applications!
Cors-Air LIGHT and Cors-Air LIGHT/SPORT engine parts price list

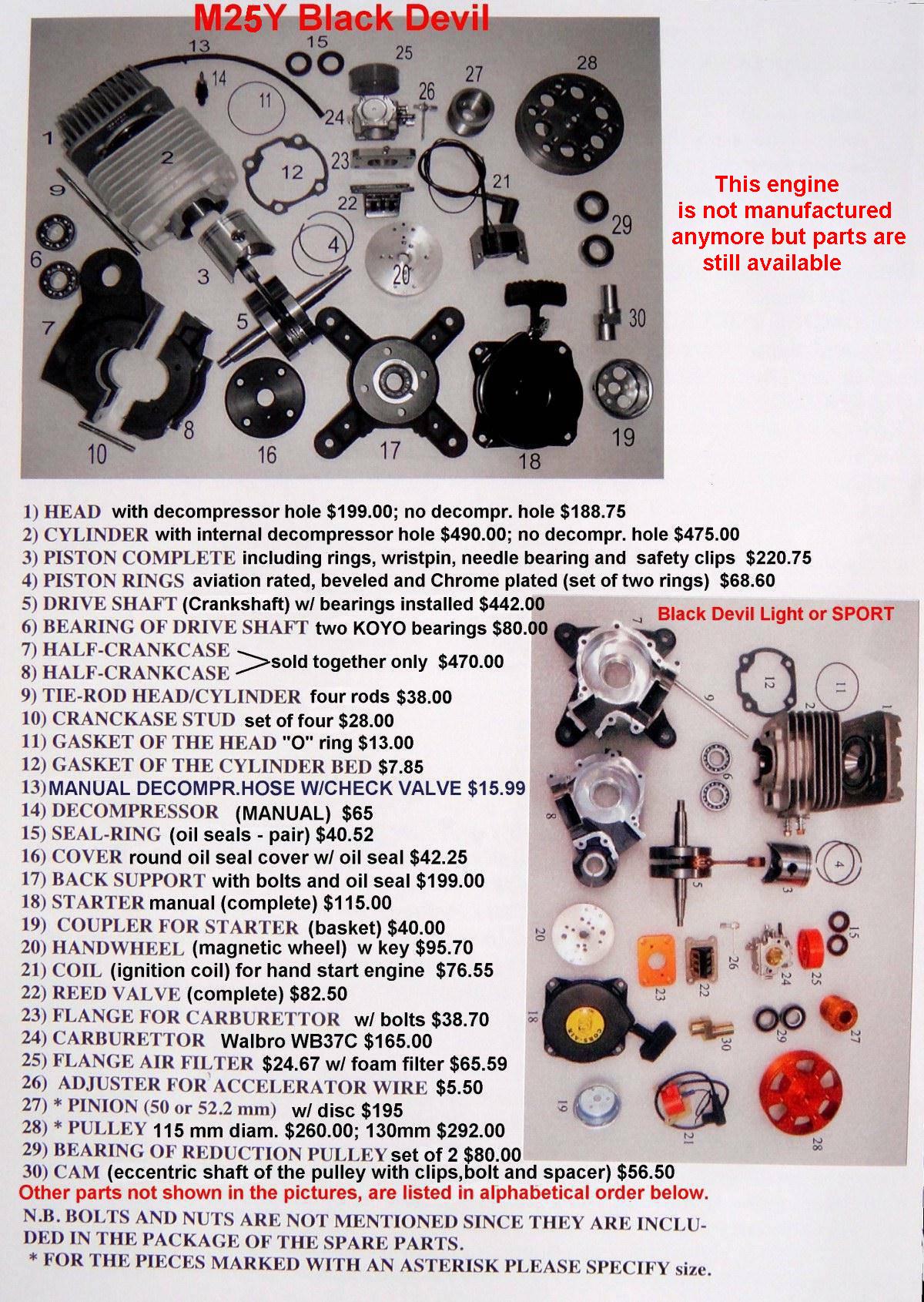

List of parts not shown in the pictures above
Air-box with rubber flange and foam filter (high impact plastic)
........$120.55 Click to see the pictures
Air box (carbon fiber super quality)for Black Devil Light SPORT............$160.00 Click to see the pictures
Air-box foam insert
.
.......$65.50Click to see the pictures
Air Box rubber flange ....................................................................................$36.67Click to see the pictures
Belts (Poly V 483 or 508) 12 groove
........
..............................$40.50
Belts (Poly V) 508 with 15 grooves
.
.......$42.50
For Black Bull engine parts, click here
Carburetor WB 37C base gasket..................................................................$5.05
WB 37C carburetor overhaul kit (all membranes, needle valve) .............$19.50
Cooling shroud with hardware
..... $148.60
Cylinder exhaust gasket (metal re-enforced)...............................
......... $13.00
Cylinder exhaust gasket for M19 engine (no metal ring).
.
....... $12.30
Decompressor (automatic) complete w/hose and check valve............ $76.00
Decompressor (automatic)with no hose and check valve
.... $64.00
Decompressor (manual)
.... $63.00
Decoompressor hose (manual) alone w check valve.............................. $15.99
Electric starter plate M25Y?Black Devil with oil seal and 4 bolts
..... $86.00
El. Starter bracket, bolt, nut, clamp rubber insert
...... $26.00
Electric starter solenoid (70A) with connectors
.... $69.90
Electric starter solenoid 30A -not recommended-
.
$37.00
Electric starter bendix
... $125.00
Electric start engine magnetic wheel with Woodruff key
....$87.00
Engine mount 1 piece (vibration insulator) factory approved
..............$25.00
Engine mounts 5 pcs (factory approved)...................................................$60.00

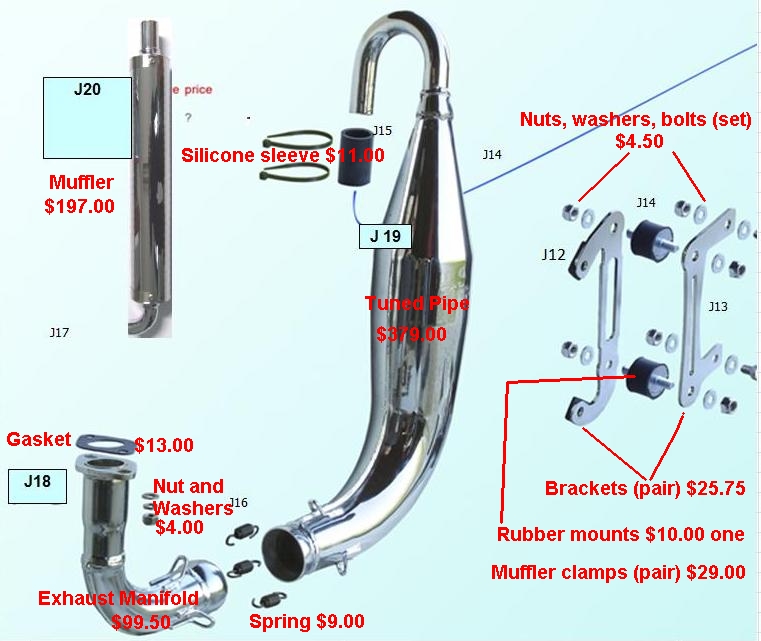

Exhaust parts:
Exhaust complete (exhaust manifold, tuned pipe,
muffler, brackets, bolts, springs) made of stainless steel........... $600.00
Muffler only /stainless steel (silencer).................................................... $167.00
Muffler only (carbon fiber) for the Black Devil Light SPORT....................$197.50
Silencer clamps, rubber insert, nuts, washers and bolts
... $26.00
Silencer brackets with two rubber mounts installed
..
.... $54.75
Tuned pipe alone stainless steel construction
................................. $379.00
Exhaust manifold (only) stainless steel construction........................... $99.50
Exhaust manifold stud with drilled safety wire hole (one piece)
... $7.00
Exhaust manifold special nut (one piece)
.
.
..... $3.00
Exhaust gasket (manifold gasket) w/ metal ring
..
$13.00
Exhaust silicone sleeve
....
$11.00
Exhaust spring new type with swivel (made by Righetti Ridolfi)
....$9.00
Needle bearing for piston wrist pin (silver plated)
..$43.75
Piston wrist pin with two clips
...
$27.00
Propeller crush plate (improved)
.
....$25.00
Propeller balancer made by JPX Italia
....$37.50
Propellers (carbon fiber) by HELIX Germany (130cm /52 inch)...........$450.00
e-Prop/ carbon fiber propeller made in France (130 cm / 52 inch ........$460.00
Reduction Parts:
Reduction (big) pulley with 15 grooves &bearings, shaft 130 mm.
. $292.00
Reduction big pulley with 12 grooves (115mm) last one ever...............$198.00
NOTE: All 12 groove systems have been discontinued
Reduction pulley eccentric shaft with clips, bolt and spacer
..
..$56.50
Reduction pulley eccentric shaft bearings (pair) (KOYO/Japan)
.........$80.00
Reduction (small pulley& crown) with 12 grooves DISCOUNTED
..$136.00
Reduction small pulley with cooling disc and 15 grooves
any reduction (2,2; 2,5 or 2,6)
...
..$195.00
Reduction small pulley w/crown gear for 2,2;2,5 and 2,6 reduction....$220.00
Reduction small pulley w/ crown or cooling disc for FORTE configuration
(reduction 1:2.88)
$245.00
Reed valve gasket (new type)......................................................................$5.50
Reed valve petals set of two (part # 22b)
........
.........$50.80
Note: shipping costs are NOT included in the above engine or parts prices.
Cors-Air M19 Black Magic parts:
Air-box with rubber flange and foam filter
.....................................
. $120.55
Air-box foam insert
.
.. $65.50
Air Box rubber flange ............................................................................ .. $23.67
Belts (Poly V 483 or 508) 12 groove
........
......................... $40.50
Belts (Poly V) 508 with 15 grooves
.
.. $42.50
Back Support base incl. Oil Seal and four bolts (part# 17) ...
......... $199.00
Cooling shroud with hardware
.$120.60
Cylinder head (part # 1) (no decompressor hole)................
............ $188.75
Cylinder head with decompressor hole (part #1)
..
... $199.20
Cylinder (part #1) with no internal decompressor hole
................ $475.00
Cylinder (part #1b) with internal decompressor hole
.
.
$490.00
Cylinder base gasket (part# 12) .................................................
.......... $7.75
Cylinder head gasket Oring (part #11 ) ..........
................................. $12.58
Cylinder exhaust gasket (metal re-enforced)...............................
...... $13.00
Cylinder exhaust gasket for M19 engine (no metal ring).
.
.... $12.30
Carburetor gasket
..................................................
............... $5.05
Clutch bell any reduction w/ bearings installed.................................. $130.50
Crankcase complete with tie rods (part #7,8,9 and 10).................
... $470.00
Crankcase tie rods (part#9)(set of 4)
..
..
. .$24.00
Crankshaft complete w/connecting rod (part #5 and bearings
.... $442.00
Crankshaft oil seals -pair (part #15 ) ........................................................ $40.52
Crankshaft bearings pair (part #6) KOYO Japan
..................................$87.00
Carburetor flange (bed) (part # 23) .....................................................
...$39.70
Decompressor (automatic) complete w/hose and check valve............$76.00
Decompressor (automatic)with no hose and check valve
....$64.00
Decompressor (manual)
....$63.00

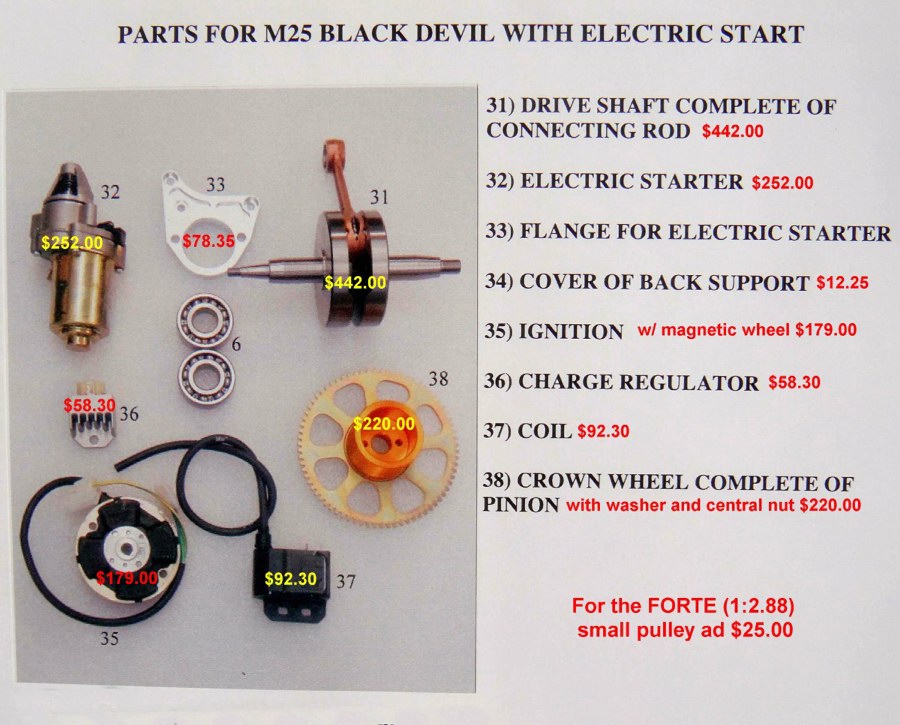

Electric starter alone(part # 32) ...................................................
......$355.00
Electric starter plate with oil seal and 4 bolts
.
.....$86.00
El. Starter bracket, bolt, nut, clamp rubber insert
......$26.00
Electric starter solenoid (70A) with connectors
.....$67.00
Electric starter solenoid 30A -not recommended-
.
$37.00
Electric starter bendix
.....$85.00
Engine mount 1 piece (vibration insulator) factory approved
............$25.00
Exhaust parts:
Exhaust complete (exhaust manifold, tuned pipe,
muffler, brackets, bolts, springs) made of stainless steel........... $600.00
Silencer Only (stainless steel (muffler).................................................. $197.00
Silencer clamps, rubber insert, nuts, washers and bolts
... $26.00
Silencer brackets with two rubber mounts installed
..
.... $54.75
Tuned pipe alone stainless steel construction
................................. $479.00
Exhaust manifold (only) stainless steel construction........................... $95.50
Exhaust manifold stud with drilled safety wire hole
.
.. $7.00
Exhaust manifold special nut
.
..... $3.00
Exhaust gasket (manifold gasket) w/ metal ring
..
$13.00
Exhaust silicone sleeve
....
$11.00
Exhaust spring new type with swivel (made by Righetti Ridolfi)
....$9.00
Hand start engine magnetic wheel (part # 20) w/ Woodruff key ...........$95.70
Electric start engine magnetic wheel with Woodruff key
...$87.00
Hand start mechanism complete with 3 dogs (part18)
..
.....$99.00
Hand start basket (coupler)
..
..$24.00
Hand start mechanism spring
.
..
$29.00

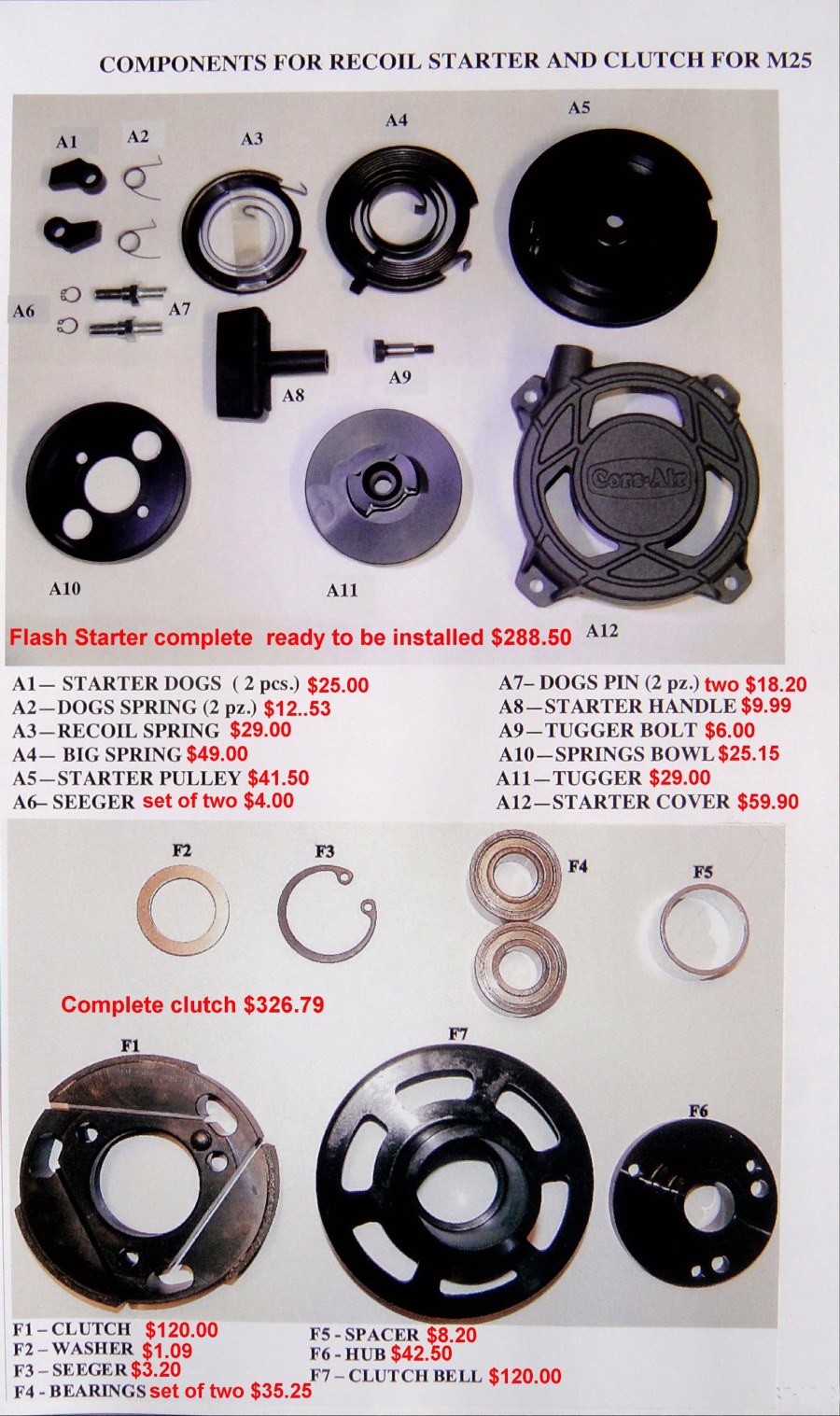

Hand start complete (new flash start)
....$280.00
Hand start engine round oil seal plate with oil seal installed
...$55.50
Ignition module made by IDM (part # 35) ...........
....$156.40
Ignition coil for hand start engine( part # 21)
...$75.55
Ignition coil for electric start engine (part 37)
..$94.00
Needle bearing for piston wristpin (silver plated)
..$43.75
Piston O, A, B or C, complete with rings, wrist pin +
needle bearing and clips (part # 3, 4)
...............................................$220.75
Piston rings ( aviation type)Chrome plated and beveled (pair)
...$68.60
Piston wristpin with two clips
.
$27.00
Propeller crush plate (improved)
.
....$25.00
Propeller balancer made by JPX Italia
....$37.50
Propellers(carbon fiber) by HELIX Germany (130cm /52 inch)...........$460.00
Reduction Parts:
Reduction (big) pulley with 12 grooves, bearings , shaft (part #28)...$270.00
Reduction (big) pulley with 15 grooves &bearings, shaft (part #28.
$292.00
Reduction pulley eccentric shaft with clips, bolt and spacer
..
.$56.50
Reduction pulley eccentric shaft bearings (pair) (KOYO/Japan)
........$80.00
Reduction (small pulley& crown) with 12 grooves DISCOUNTED
.$136.00
Reduction small pulley with cooling disc and 15 grooves
any reduction (2,2; 2,5 or 2,6)
...
.$189.00
Reduction small pulley w/crown gear for 2,2;2,5 and 2,6 reduction...$220.00
Reduction small pulley w/ crown or cooling disc for FORTE configuration
(reduction 1:2.88)
230.00
Reed valve complete (part # 22) ..................................................
..........$80.50
Reed valve petals set of two (part # 22b)
........
... .....$50.80
Voltage regulator made by IDM (part # 36)
..............$58.30
Note: shipping costs are NOT included in the above engine or parts prices.
